Factory cruise control

Post by PasiR » Thu May 15, 2014 12:22 am

Any cruise specialists here?
How does it work, do I need to disassemble the unit for checking it etc...?
12V coming from turn signal toggle button, vacuum hose connected and all cables are there too.
Thanks!
Top
71_bronze_gtx
GTX (RS)
Posts: 268
Joined: Tue Jan 22, 2013 1:32 pm
My Cars: 71 GTX
72 cuda repli-mod
Location: S. E. Michigan

Re: Factory cruise control

Post by 71_bronze_gtx » Thu May 15, 2014 11:21 am

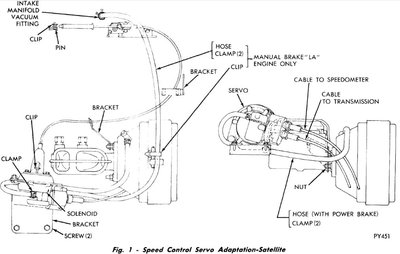

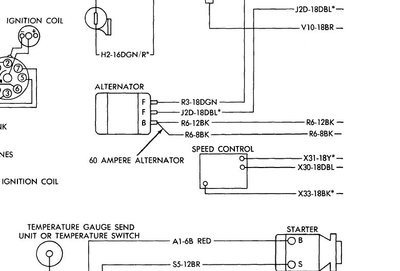

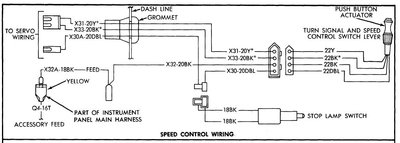

I've attached a screen print of the FSM diagram of the speed control. Also, the engine side and dash side wiring diagrams.

If you want, send me a PM, and I'll send the whole electrical chapter PDF to you. It has operation and troubleshooting descriptions.
